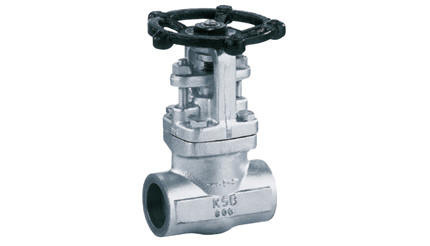

Forged Gate Valves are designed and developed in accordance with various international industrial standards. They are manufactured from the finest quality components and under precise direction of experienced quality controllers. One can avail these in various materials, dimensions, ranges, sizes and other specifications as per their precise demands and requirements. Forged Gate Valves are one of the most preferred selections for clients owing to its precise design, accurate dimensions and longer service life.
|
Application |
Isolation |
|
Variants on request |
Locking Arrangement Flanged Ends to #150 #200 #600 Threaded/ Butt Weld connections Position Indicator Other Material of Construction |
|
ANSI Class / Rating |
#800 #1500 #2500 |
|
Design Standard |
API 602 or B 16.34 |
|
Size |
15 mm to 50 mm |
|
Materials (ASTM) |
A105 Carbon Steel, A182 316L Stainless Steel, A182 F22 Alloy Steel |
|
Ends |
BSP, NPT, RF, SW |
|
Salient Features |
Hard Faced Seats (13% Cr/ Stellite) |
|
Applications |
For water, Steam, Gas, Oil and other forms of non agressive media. |

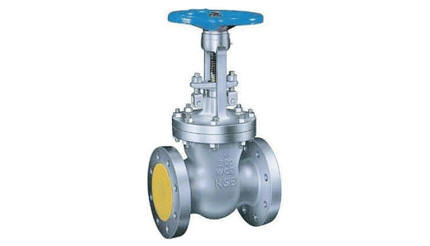

CAST GATE VALVE:
Cast Gate Valves are designed and developed in accordance with various international industrial standards. They are manufactured from the finest quality components and under precise direction of experienced quality controllers. One can avail these in various materials, dimensions, ranges, sizes and other specifications as per their precise demands and requirements. Cast Gate Valves are one of the most preferred selections for clients owing to its precise design, accurate dimensions and longer service life.
|
Application |
Isolation |
|
Variants on request |
Bypass Arrangement Gear/ Electrical Actuator Locking Arrangement Position Indicator Lantern Ring Stem Protector Other Material of Construction |
|
ANSI Class / Rating |
#150 #300 #600 |
|
Design Standard |
API 602 or B 16.34 |
|
Size |
50 mm to 600 mm |
|
Materials (ASTM) |
A 216 WCB Carbon Steel, A217 WC6 Alloy Steel, A 351 CF8 Stainless Steel |
|
Ends |
Flanged End, Butt Weld |
|
Applications |
For water, Steam, Gas, Oil and other forms of non agressive media. |
PRESSURE SEAL GATE & GLOBE VALVE:
Pressure Seal Gate & Globe Valves are designed and developed in accordance with various international industrial standards. They are manufactured from the finest quality components and under precise direction of experienced quality controllers. One can avail these in various materials, dimensions, ranges, sizes and other specifications as per their precise demands and requirements. Pressure Seal Gate Globe Valves are one of the most preferred selections for clients owing to its precise design, accurate dimensions and longer service life.
|
Application |
Isolation |
|
Variants on request |
Bypass Arrangement Gear/ Electrical Actuator Other pressure relief arrangements Full bore arrangements Locking Arrangement Position Indicator Stem Protector Other Material of Construction Special Class Execution |
|
ANSI Class / Rating |
#900 #1500 #2500 |
|
Design Standard |
B 16.34 |
|
Size |
50 mm to 600 mm |
|
Materials (ASTM) |
A 216 WCB, A217 WC6/WC9, A 217 C12A |
|
Ends |
Butt Weld |
|
Applications |
For water, Steam, Gas, Oil and other forms of non agressive media. |
