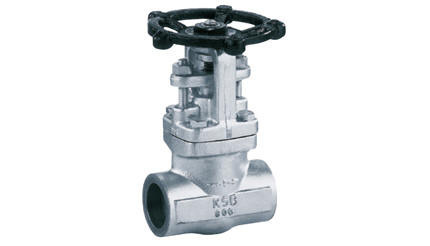

Gate Valve
Forged Gate Valves are designed and developed in accordance with various international industrial standards. They are manufactured from the finest quality components and under precise direction of experienced quality controllers. One can avail these in various materials, dimensions, ranges, sizes and other specifications as per their precise demands and requirements. Forged Gate Valves are one of the most preferred selections for clients owing to its precise design, accurate dimensions and longer service life.
Application | Isolation |
Variants on request | Locking Arrangement Flanged Ends to #150 #200 #600 Threaded/ Butt Weld connections Position Indicator Other Material of Construction |
ANSI Class / Rating | #800 #1500 #2500 |
Design Standard | API 602 or B 16.34 |
Size | 15 mm to 50 mm |
Materials (ASTM) | A105 Carbon Steel, A182 316L Stainless Steel, A182 F22 Alloy Steel |
Ends | BSP, NPT, RF, SW |
Salient Features | Hard Faced Seats (13% Cr/ Stellite) |
Applications | For water, Steam, Gas, Oil and other forms of non agressive media. |
CAST GATE VALVE:
Cast Gate Valves are designed and developed in accordance with various international industrial standards. They are manufactured from the finest quality components and under precise direction of experienced quality controllers. One can avail these in various materials, dimensions, ranges, sizes and other specifications as per their precise demands and requirements. Cast Gate Valves are one of the most preferred selections for clients owing to its precise design, accurate dimensions and longer service life.
Application | Isolation |
Variants on request | Bypass Arrangement Gear/ Electrical Actuator Locking Arrangement Position Indicator Lantern Ring Stem Protector Other Material of Construction |
ANSI Class / Rating | #150 #300 #600 |
Design Standard | API 602 or B 16.34 |
Size | 50 mm to 600 mm |
Materials (ASTM) | A 216 WCB Carbon Steel, A217 WC6 Alloy Steel, A 351 CF8 Stainless Steel |
Ends | Flanged End, Butt Weld |
Applications | For water, Steam, Gas, Oil and other forms of non aggressive media. |
PRESSURE SEAL GATE & GLOBE VALVE:
Pressure Seal Gate & Globe Valves are designed and developed in accordance with various international industrial standards. They are manufactured from the finest quality components and under precise direction of experienced quality controllers. One can avail these in various materials, dimensions, ranges, sizes and other specifications as per their precise demands and requirements. Pressure Seal Gate Globe Valves are one of the most preferred selections for clients owing to its precise design, accurate dimensions and longer service life.
Application | Isolation |
Variants on request | Bypass Arrangement Gear/ Electrical Actuator Other pressure relief arrangements Full bore arrangements Locking Arrangement Position Indicator Stem Protector Other Material of Construction Special Class Execution |
ANSI Class / Rating | #900 #1500 #2500 |
Design Standard | B 16.34 |
Size | 50 mm to 600 mm |
Materials (ASTM) | A 216 WCB, A217 WC6/WC9, A 217 C12A |
Ends | Butt Weld |
Applications | For water, Steam, Gas, Oil and other forms of non aggressive media. |
Globe Valve
PRESSURE SEAL GATE & GLOBE VALVE OF KLINGER,KSB,AUDCO,SPIRAX,FORBES,EQUI MAKE:
Pressure Seal Gate & Globe Valves are designed and developed in accordance with various international industrial standards. They are manufactured from the finest quality components and under precise direction of experienced quality controllers. One can avail these in various materials, dimensions, ranges, sizes and other specifications as per their precise demands and requirements. Pressure Seal Gate Globe Valves are one of the most preferred selections for clients owing to its precise design, accurate dimensions and longer service life.
Application | Isolation |
Variants on request | Bypass Arrangement Gear/ Electrical Actuator Other pressure relief arrangements Full bore arrangements Locking Arrangement Position Indicator Stem Protector Other Material of Construction Special Class Execution |
ANSI Class / Rating | #900 #1500 #2500 |
Design Standard | B 16.34 |
Size | 50 mm to 600 mm |
Materials (ASTM) | A 216 WCB, A217 WC6/WC9, A 217 C12A |
Ends | Butt Weld |
Applications | For water, Steam, Gas, Oil and other forms of non agressive media. |
Forged Globe Valves:
Forged Globe Valves are designed and developed in accordance with various international industrial standards. They are manufactured from the finest quality components and under precise direction of experienced quality controllers. One can avail these in various materials, dimensions, ranges, sizes and other specifications as per their precise demands and requirements. Forged Globe Valves are one of the most preferred selections for clients owing to its precise design, accurate dimensions and longer service life.
Application | Throttle and isolation |
Variants on request | Locking Arrangement Flanged Ends to #150 #300 #600 Position Indicator Other Material of Construction |
ANSI Class / Rating | #800 #1500 #2500 |
Design Standard | API 602 or ASME B 16.34 |
Size | 15 mm to 50 mm |
Materials (ASTM) | A 105, A182 316L, A182 F22 |
Ends | BSP, NPT, RF, SW |
Applications | For water, Steam, Gas, Oil and other forms of non aggressive media. |
Cast Globe Valves:
Cast Globe Valves are designed and developed in accordance with various international industrial standards. They are manufactured from the finest quality components and under precise direction of experienced quality controllers. One can avail these in various materials, dimensions, ranges, sizes and other specifications as per their precise demands and requirements. Cast Globe Valves are one of the most preferred selections for clients owing to its precise design, accurate dimensions and longer service life.
Application | Throttle and Isolation |
Variants on request | Bypass Arrangement Gear/ Electrical Actuator Locking Arrangement Lantern Ring Position Indicator Stem Protector Plug Type Disk |
ANSI Class / Rating | #150 #300 #600 |
Design Standard | BS 1873 |
Size | 50 mm to 250 mm |
Materials (ASTM) | A 216 WCB, A217 WC6, A 351 CF8 |
Ends | Butt Weld, Flanged |
Applications | For water, Steam, Gas, Oil and other forms of non agressive media. |

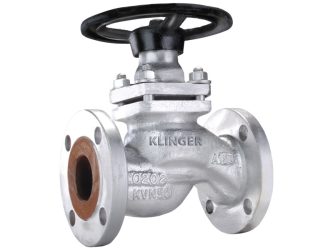

Piston Valve
Product Specification and Range for Klinger/Forbes/Equi
Incorporating the patented, proven world famous Seatless and Glandless sealing principle, this piston valve
has proven it self many times over, with its superlative performance and class VI leakage, with all
critical applications like Acids, Gases, Vacuum, Heat Transfer media, Steam etc.
Available in Cast Carbon and Stainless Steels,Forged Carbon and Stainless steel and other alloy
steels in size15mm to 200mm. Approved By all Consultants and Statutory and regulatory Authorities
like IBR etc.
The piston Valves can be provided with added features like heating jacket,Electric and electro pneumatic Actuator,
Regulating characteristics, Extended Spindles etc, for pressure classes to ANSI#300 / Class#800 /DINetc.
- Seatless Valves.
- Economic ,easy to service
- Leak –tight across ports and to atmosphere
- No erosion of sealing surface
- saves energy, environment friendls
- maintenance free

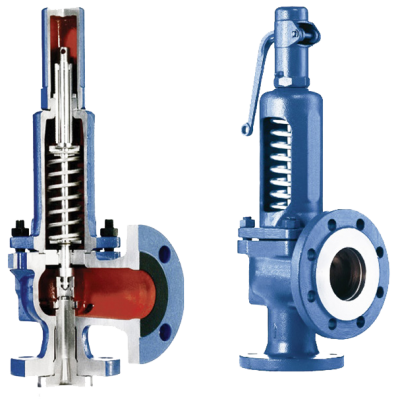

Safety Valve
Product Specification and Range
Hi-Lift Safety valve
Flanged standard pressure series suitable for steam, gas and liquid service. They have proven themselves as a universal safety valve for many applications.
Similar to LVC-500, but with closed Bonnet & Closed Cap. Also available with Packed Lever, Bellow Seated and Soft Seat for critical services. Valve size, orifice and rating same as LVC-500.
Product Details
- Size: 15 NB x 15 NB To 250 NB x 350 NB
- Pressure Range: 0.7 to 90 Kg/cm^2
- Temperature Range: (-40 Deg D To +538 Deg C)
- Fluid Supported: Liquid, Gas & Steam
- Certifications: IBR / EIL / CCOE
- Construction Materials: Cast Steel , Stanless Steel / L.C.B./ WC6 etc.
- Proud Installation: AALL REFINERIES AND ALL
INDUSTIRESDANI PORT/ IOCL-PETRONAS
INDUSTRIES
- Chemical Industry
- Petrochemical Industry
- Power
- Industrial Gases
- Beverage Industry
- Pharmaceutical Industry
Non-Return & Check Valves
NRV Check & direction Control Valves:
Cast Check Valves are designed and developed in accordance with various international industrial standards. They are manufactured from the finest quality components and under precise direction of experienced quality controllers. One can avail these in various materials, dimensions, ranges, sizes and other specifications as per their precise demands and requirements. Cast Check Valves are one of the most preferred selections for clients owing to its precise design, accurate dimensions and longer service life.
Application | One way flow |
Variants on request | Trim 8, Trim 5, for #150, #300 valves Trim 5 for #600 WCB valves Trim 8 for #600 WC6 valves Drain Plug Other Material of Construction |
ANSI Class / Rating | #150 #300 #600 |
Design Standard | API 602 or B 16.34 |
Size | 50 mm to 300 mm |
Materials (ASTM) | A 216 WCB Carbon Steel, A217 WC6 Alloy Steel, A 351 CF8 Stainless Steel |
Ends | RF FLanged End, BW Butt Weld |
Applications | For water, Steam, Gas, Oil and other forms of non aggressive media. |
Make | Ksb, Audco, Spirax, Flowserve, Equi. |
Pressure Seal Check Valves :
Cast Swing Pressure Seal Check Valves are designed and developed in accordance with various international industrial standards. They are manufactured from the finest quality components and under precise direction of experienced quality controllers. One can avail these in various materials, dimensions, ranges, sizes and other specifications as per their precise demands and requirements. KSB,Audco,Spirax,Flowserve,Equi Cast Swing Pressure Seal Check Valves are one of the most preferred selections for clients owing to its precise design, accurate dimensions and longer service life.
Application | One way flow |
Variants on request | Special Class Execution Other Materials of Construction |
ANSI Class / Rating | #900 #1500 #2500 |
Design Standard | B 16.34 |
Size | 50 mm to 600 mm |
Materials (ASTM) | A 216 WCB Carbon Steel, A217 WC6 Alloy Steel, A 217 C12A |
Ends | BW Butt Weld |
Applications | For water, Steam, Gas, Oil and other forms of non agressive media. |
Make | Ksb, Audco, Spirax, Flowserve, Equi. |

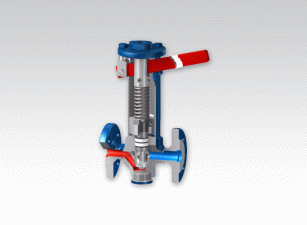

Blowdown Valve
A steam boiler evaporates liquid water to form steam, or gaseous water; and requires frequent replenishment of boiler feedwater for the continuous production of steam required by most boiler applications. Water is a capable solvent, and will dissolve small amounts of solids from piping and containers including the boiler. Continuing evaporation of steam concentrates dissolved impurities until they reach levels potentially damaging to steam production within the boiler. Without blowdown, impurities would reach saturation levels and begin to precipitate within the boiler. Impurity concentrations are highest where steam is being produced near heat exchange surfaces. Precipitation would be expected to occur in the form of scale deposits on those heat exchange surfaces. Scale deposits thermally insulate heat exchange surfaces initially decreasing the rate of steam generation, and potentially causing boiler metals to reach failure temperatures.
We carry a ready stock of Gestra , Spirax , Flowserve & equi to all other reputed brand of valves.
We manufacture all type of blowdown & condensate recovery systems ( continuos & intermediate ).
Butterfly Valve
We provide complete range of Butterfly Valve with different sizes and material to our leading clients. Butterfly valves are heavy duty material and is used with CI and SS Disc. AUDCO,SPIRAX,KSB,etc butterfly valve are in ready stock.
Features:
- Optimal performance
- Sturdy construction
- Superb finish
